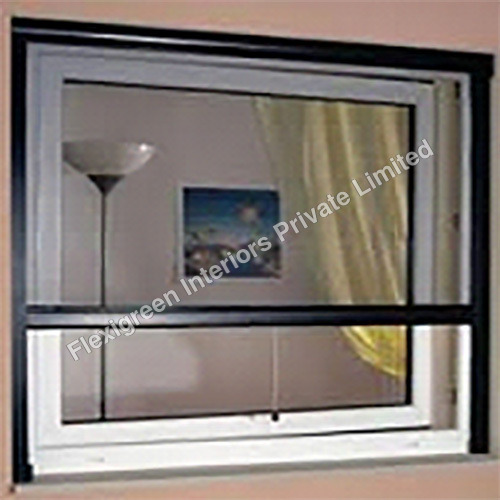

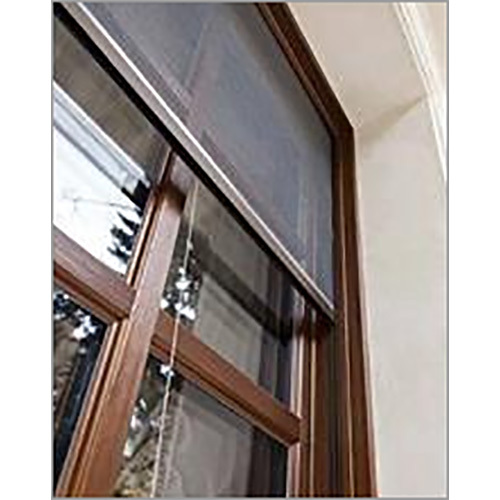

Retractable Pleated Mesh

About Retractable Pleated Mesh

Core Components

Pleated Mesh Fabric

• High-quality polyester or fiberglass mesh.
• UV-resistant, dust-repellent, anti-bacterial coating (optional).
• Pleated (accordion style) for smooth folding & durability.

• Aluminium / PVC powder-coated profiles.
• Hold the mesh in position during sliding.
• Includes brush strips or sealing gaskets for insect protection.

• Aluminium powder-coated profiles.
• Bottom rail with low-threshold track for easy movement.
• Designed for smooth sliding and child-safe operation.

• Bead Chain Drive - Operates the mesh left-to-right or top-to-bottom.
• Chain Tensioner / Holder - Keeps the chain tight, avoids sagging.
• Drive Pulley & Gear Unit - Ensures smooth pull action.
• Return Spring (optional) - Helps retract mesh automatically after release.
• Handle Bar with Grip - For easy manual pull.

• Spring Cartridge / Tension Spring Unit - Ensures automatic retraction of the mesh.
• Spring Adjuster / Cap - For tension control.
• Roller Tube (if semi-roll type) - Holds mesh and controls rolling motion.
• Brake System (optional) - Controls speed of spring retraction for safety.

• End Caps & Stoppers - ABS/Polycarbonate for neat finish & stop limits.
• Magnetic Lock / Catch - Ensures mesh locks in place when closed.
• Plastic Gliders / Runners - Help mesh fold smoothly in pleats.
• Brush Seals - Added alongside channels for dust & insect proofing.
• Mounting Brackets & Screws - For easy installation.
• Decorative Fascia / Cover Strip - To conceal headrail & give premium finish.
